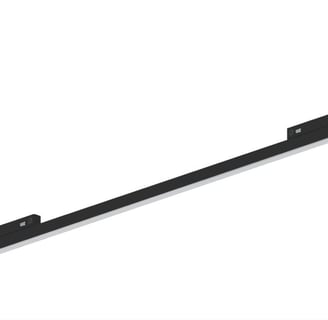

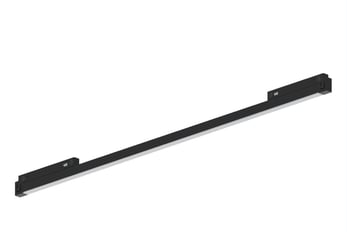

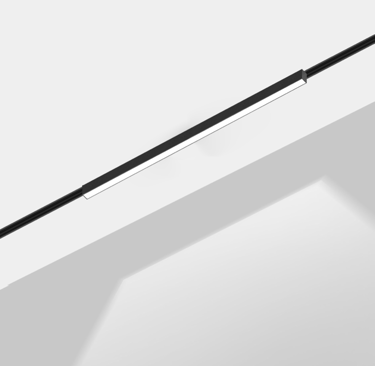

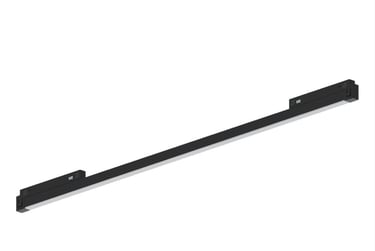

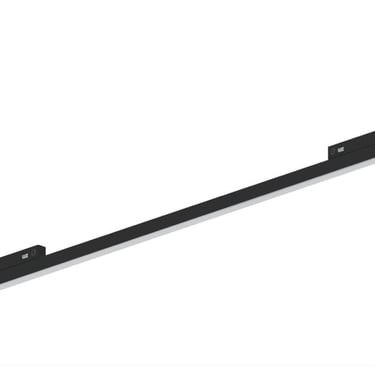

Products Name: Magnetic Flood light
Power: 9W
Voltage: DC24V
Housing Color: Black
Product Size: L316*W5*H14mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 120°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

XT-M5 300F

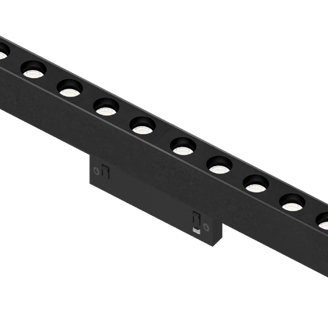

XT-M5 12T

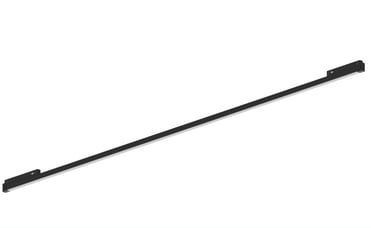

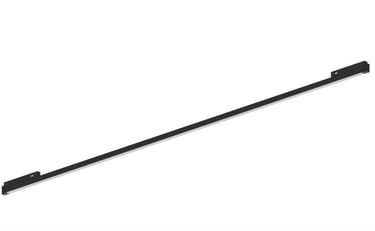

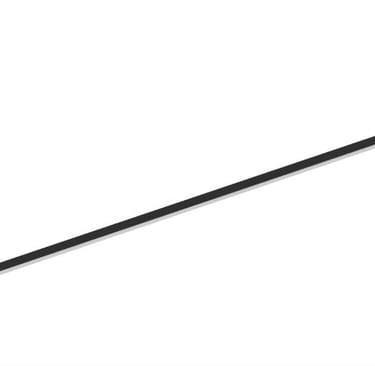

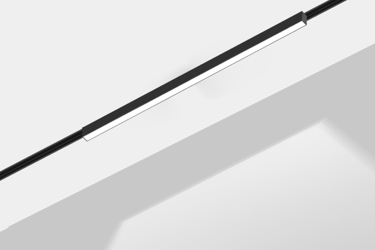

Products Name: Magnetic Flood light
Power: 18W
Voltage: DC24V
Housing Color: Black
Product Size: L616*W5*H14mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 120°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

XT-M5 600F

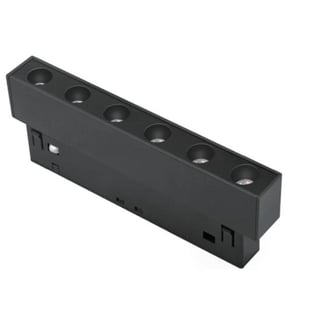

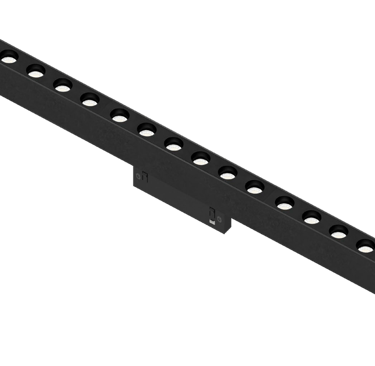

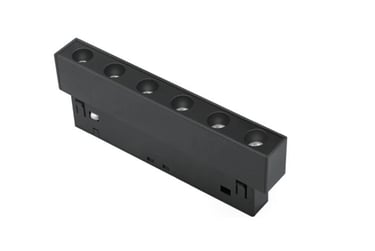

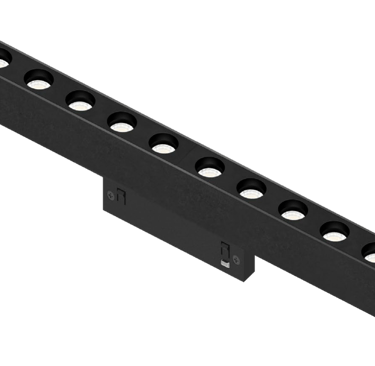

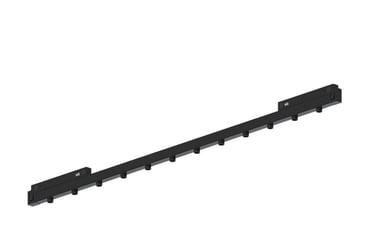

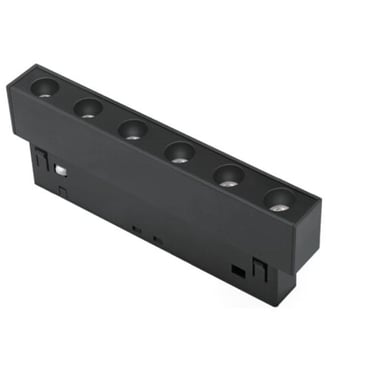

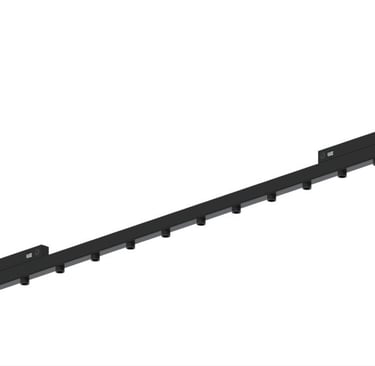

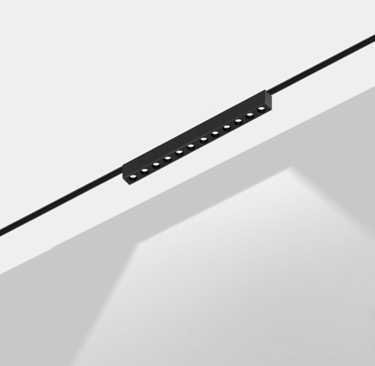

Products Name: Magnetic Grille light
Power: 6W
Voltage: DC24V
Housing Color: Black
Product Size: L216*W5*H14mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 60°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

Products Name: Magnetic Flood light
Power: 6W
Voltage: DC24V
Housing Color: Black
Product Size: L118*W15*H36mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 24°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

Products Name: Magnetic Flood light
Power: 12W
Voltage: DC24V
Housing Color: Black
Product Size: L232*W15*H36mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 24°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

Products Name: Magnetic Flood light
Power: 18W
Voltage: DC24V
Housing Color: Black
Product Size: L345*W15*H36mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 24°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

XT-M5 GR06T

XT-M5 GR12T

XT-M5 GR18T

XT-M5 FL600

XT-M5 FL300

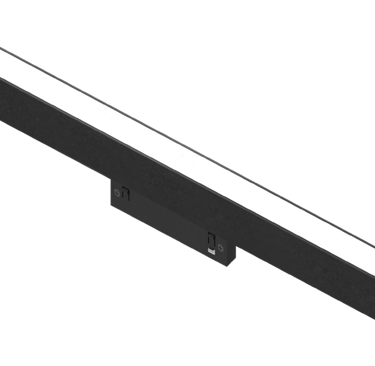

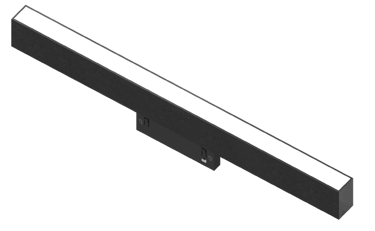

Products Name: Magnetic Flood light
Power: 9W
Voltage: DC24V
Housing Color: Black
Product Size: L300xW15xH36mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 120°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

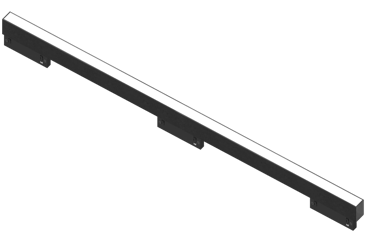

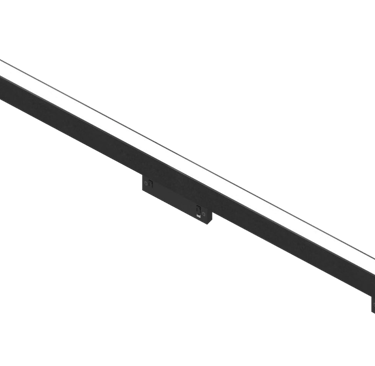

Products Name: Magnetic Flood light
Power: 18W
Voltage: DC24V
Housing Color: Black
Product Size: L600xW15xH36mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 120°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

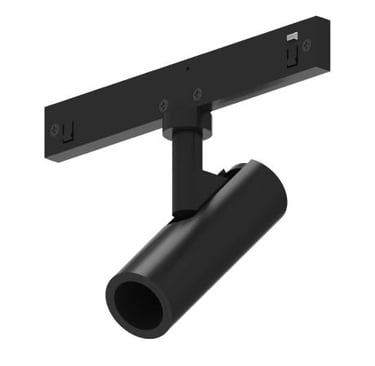

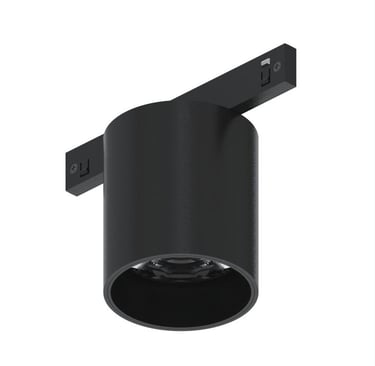

Products Name: Magnetic Spot light
Power: 3W
Voltage: DC24V
Housing Color: Black
Product Size: Ø20*L60mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 24°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

Products Name: Magnetic Spot light
Power: 6W
Voltage: DC24V
Housing Color: Black
Product Size: Ø33*L85mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 24°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

Products Name: Magnetic Spot light
Power: 12W
Voltage: DC24V
Housing Color: Black
Product Size: Ø43*L110mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 24°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

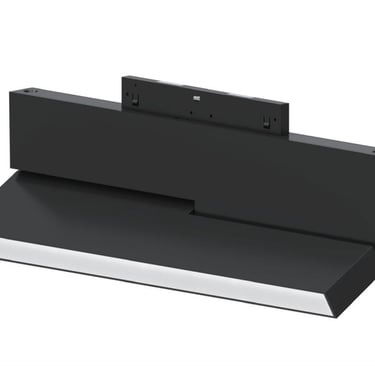

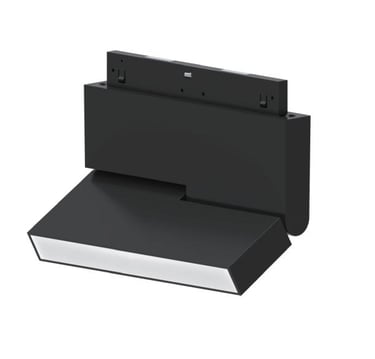

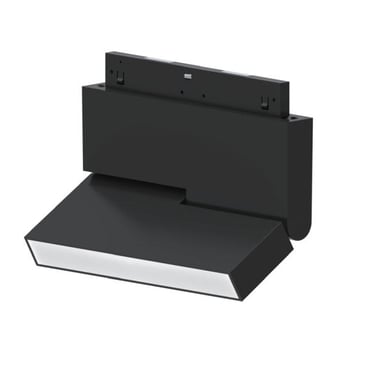

Products Name: Magnetic folded flood light
Power: 6W
Voltage: DC24V
Housing Color: Black
Product Size: L118*W15*H100mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 120°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

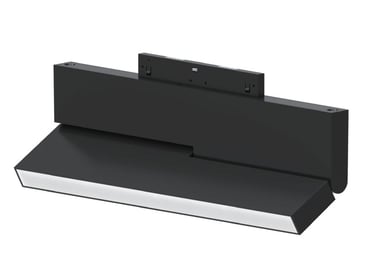

Products Name: Magnetic folded flood light
Power: 12W
Voltage: DC24V
Housing Color: Black
Product Size: L232*W15*H100mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 120°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

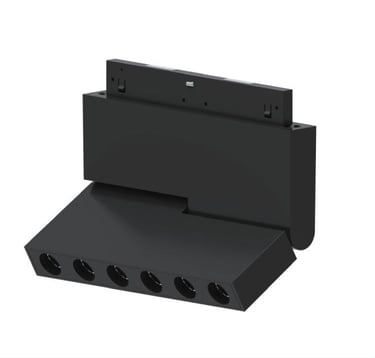

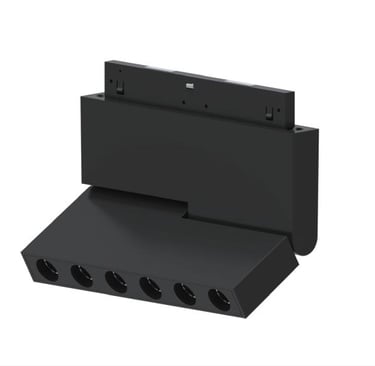

Products Name: Magnetic folded grille light
Power: 6W
Voltage: DC24V
Housing Color: Black
Product Size: L118*W15*H100mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 24°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

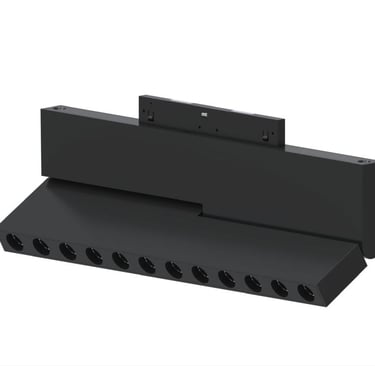

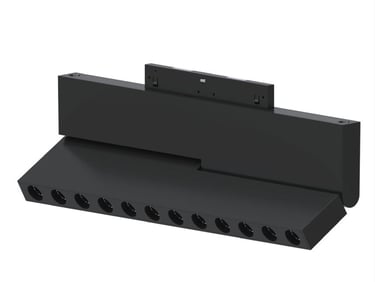

Products Name: Magnetic folded Grille light
Power: 12W
Voltage: DC24V
Housing Color: Black
Product Size: L232*W15*H100mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 24°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

Products Name: Magnetic spot light
Power: 3W
Voltage: DC24V
Housing Color: Black
Product Size: Ø20*L60mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 24°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

Products Name: Magnetic spot light
Power: 6W
Voltage: DC24V
Housing Color: Black
Product Size: Ø50*H57mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 24°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

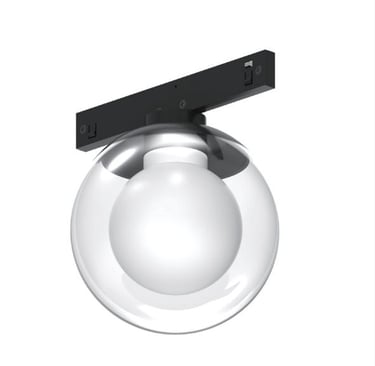

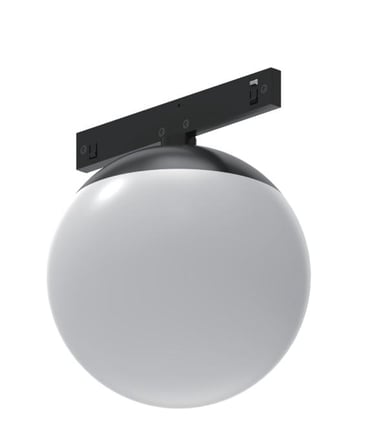

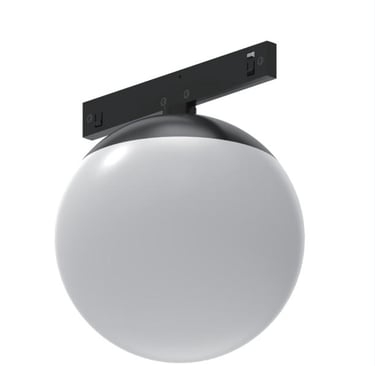

Products Name: Magnetic Ball light
Power: 6W
Voltage: DC24V
Housing Color: Black
Product Size: Ø80*H85
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 150°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

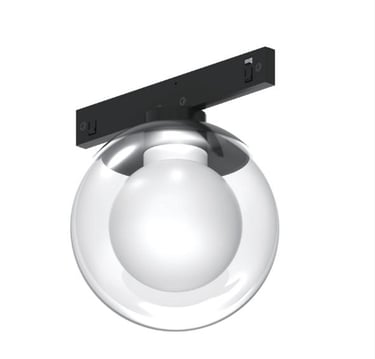

Products Name: Magnetic Ball light
Power: 6W
Voltage: DC24V
Housing Color: Black
Product Size: Ø95*H95mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 150°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

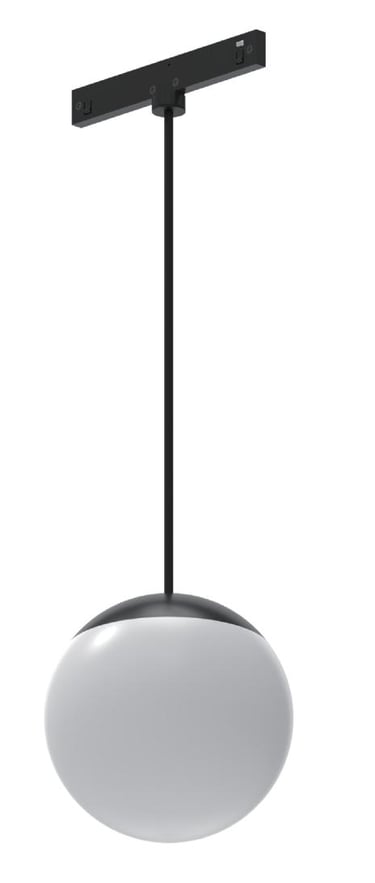

Products Name: Magnetic pendant light
Power: 6W
Voltage: DC24V
Housing Color: Black
Product Size: Ø95*H95mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 150°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

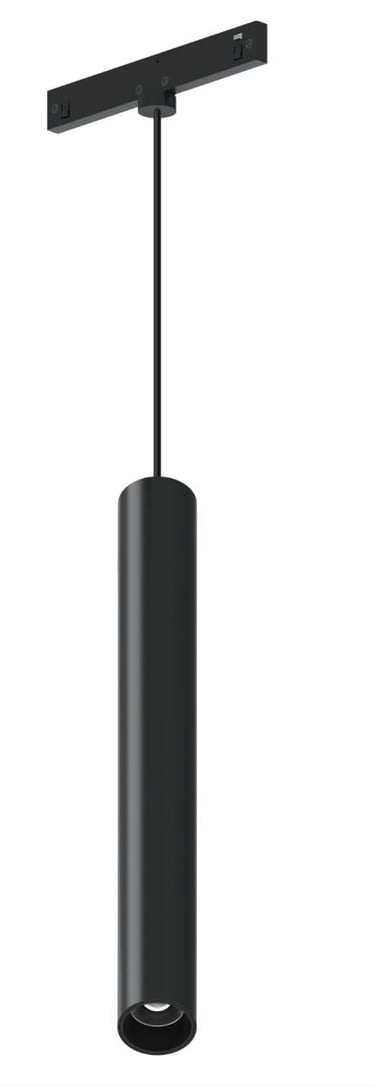

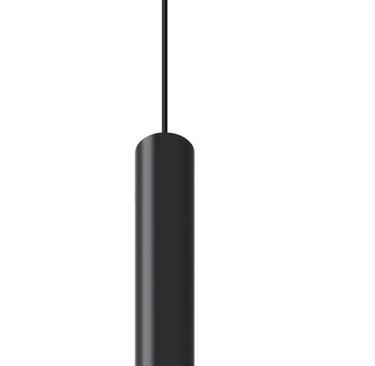

Products Name: Magnetic Pendant light
Power: 6W
Voltage: DC24V
Housing Color: Black
Product Size: Ø30*H300mm
Color temperature: 3000K/4000K/6000
CRI：≥90
Beam Angle: 150°
Material: Aluminum
Protection : IP20
Supported by: Dimmable Group control dimming and color adjustment
(3000-5700K)

XT-M5 SP43

XT-M5 ZD-06F

XT-M5 SP33

XT-M5 SP20

XT-M5 ZD-12F

XT-M5 ZD-12T

XT-M5 ZD-06T

XT-M5 TR50

XT-M5 TR20

XT-M5 B80

XT-M5 P95

XT-M5 PL30

XT-M5 PL80

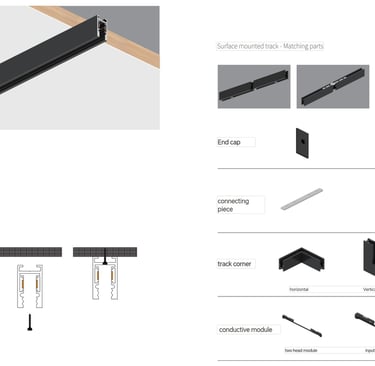

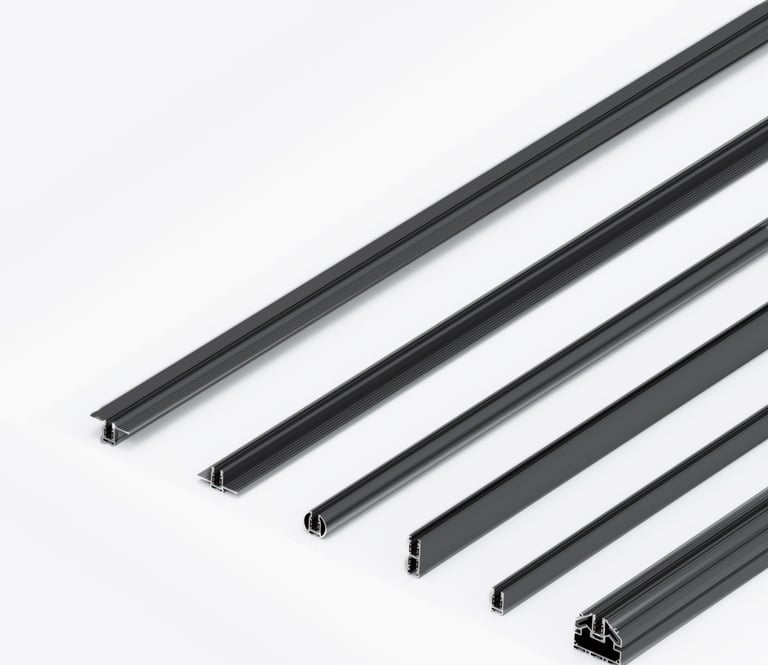

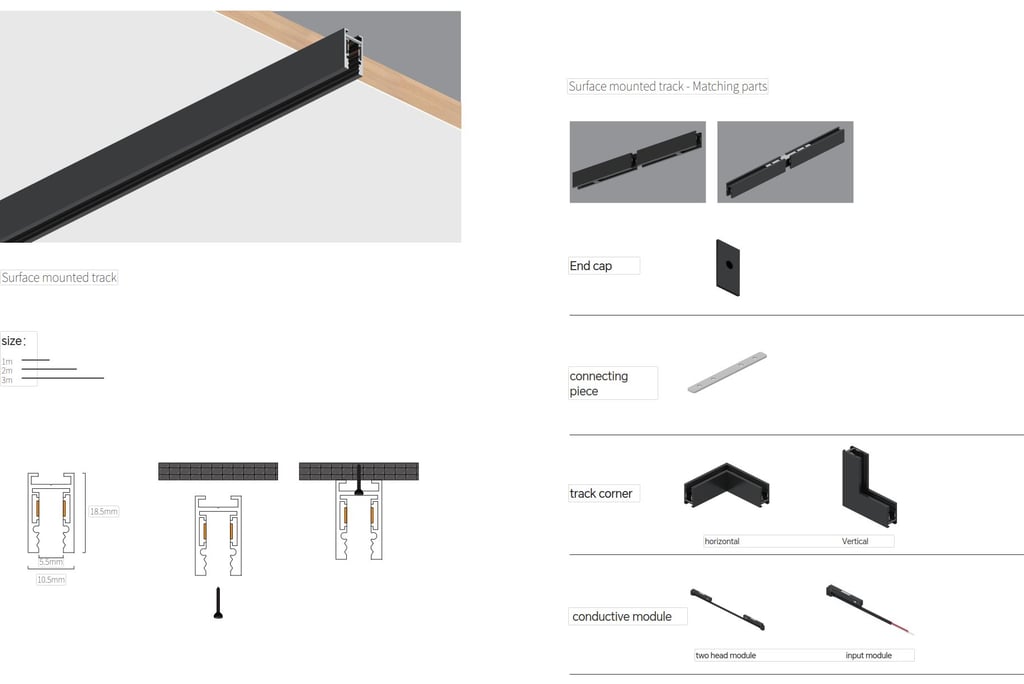

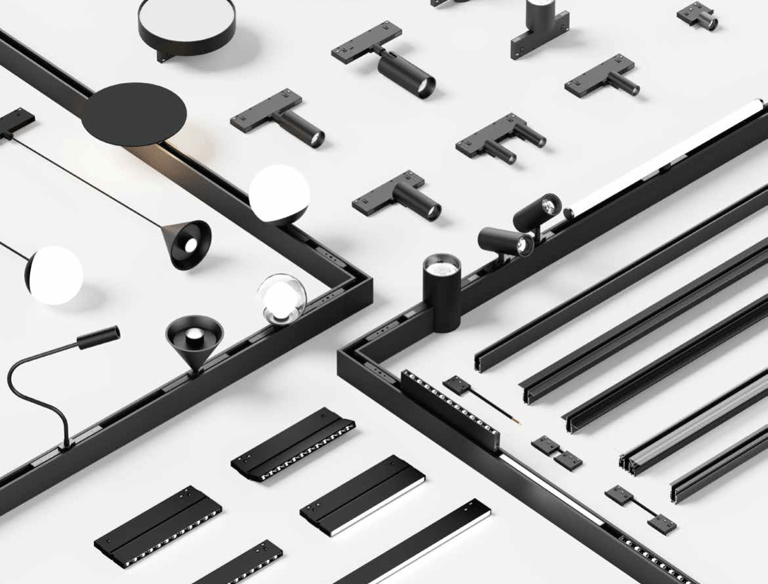

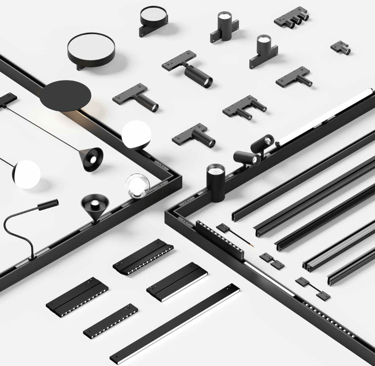

Surface Mounted Track & Accessiories

XT-M5 Surface mounted track , consists of compact profiles/traks, in which LED light modules are placed. The light modules are magnetically connected to the tracks, making them easy to install by hand without the need for tools. The low voltage of the system allows the light modules to bepositioned and moved while the power is on. When the light modules are nagnetically connected to the rail, they are automatically powered and workimmediately. The installation of the light modles is therefore no more than a simple 'click' The Track offers endless configuration possibilities due to the wide rage of profiles/tracks, connections, installation types, light modules and controloptions.

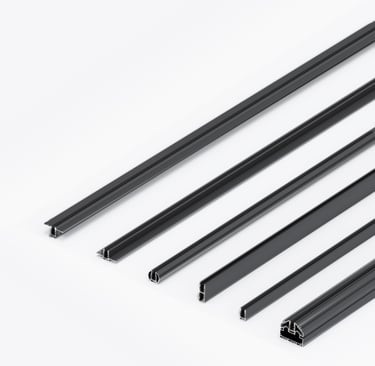

XT-M5 series track lighting system offers different installation types. One profile with 6 options: surface-mounted on all surfaces, built-in and semi-recessed with the recessed kit and suspended with the suspension kit. and with film for surface mounted , up-down lighting track series , There is a special trimless recessed profile for plaster walls and ceilings. In combination with various corner connections, M5 moves effortlessly through any room.

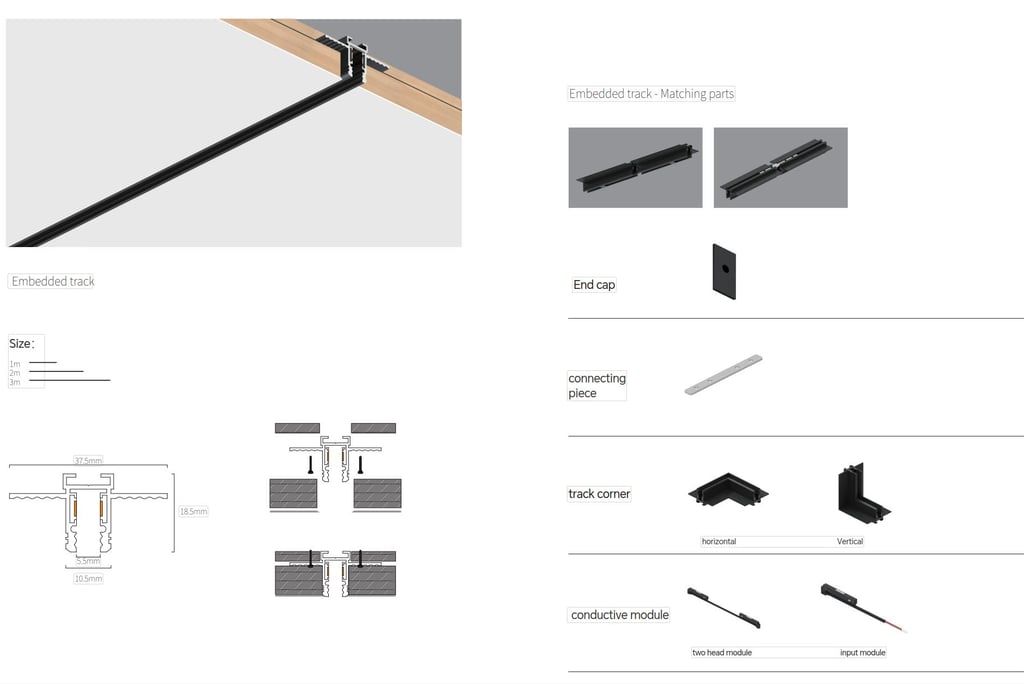

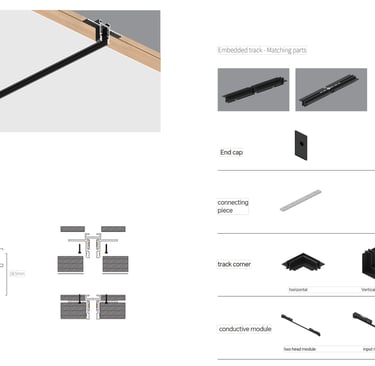

Recessed Mounted Track & Accessiories

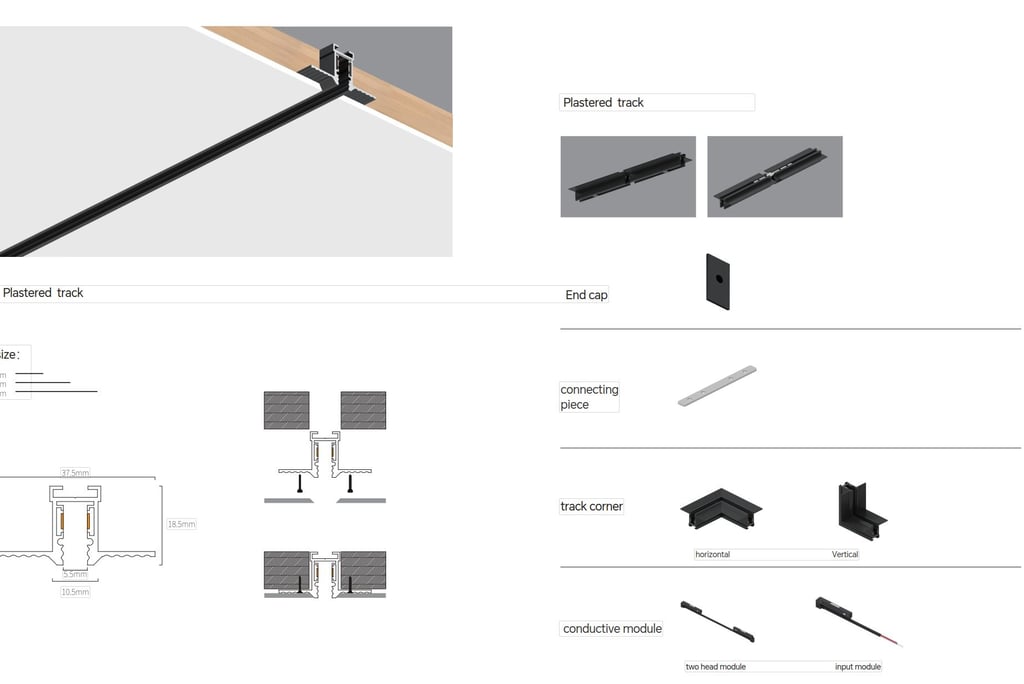

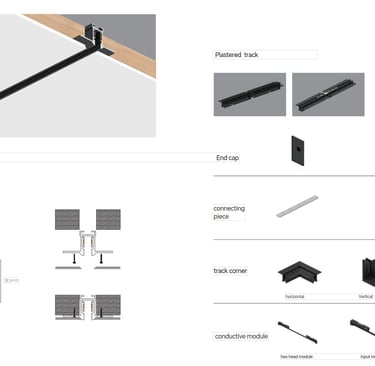

Plastered Track & Accessiories

Plastered Track & Accessiories

up-down lighting track & Accessiories
